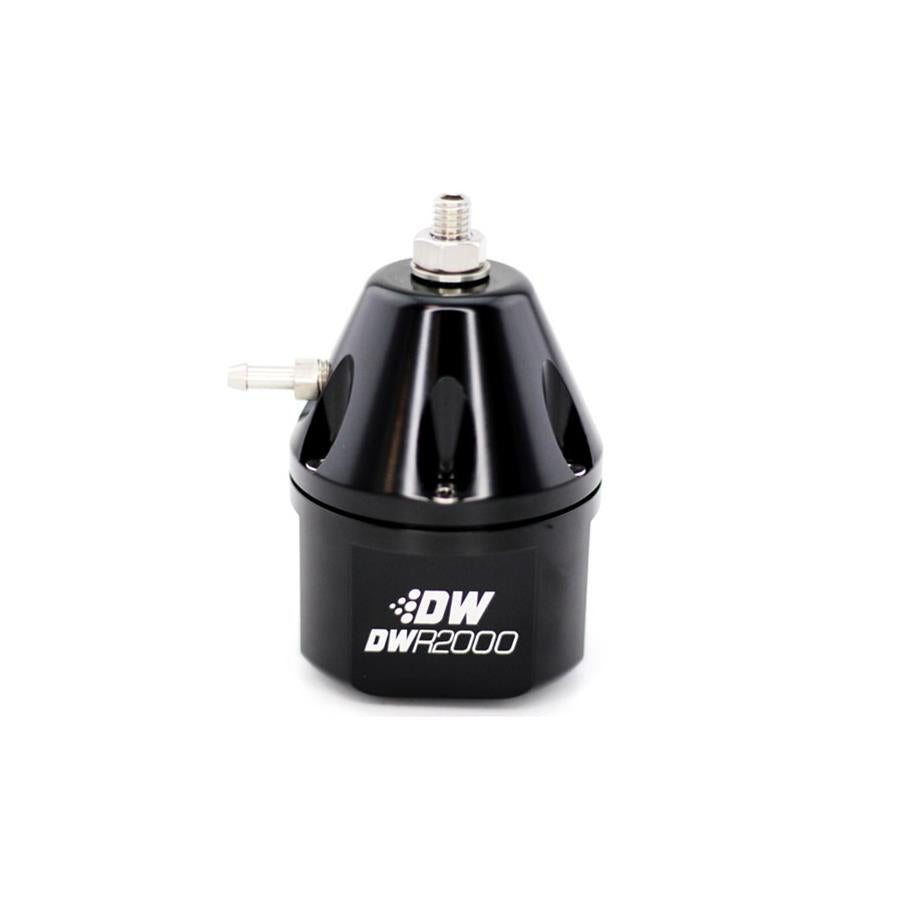

DeatschWerks DWR2000 Fuel Pressure Regulator 6-2000-FRB

DeatschWerks Fuel Pressure Regulators

DeatschWerks fuel pressure regulators provide the quality, precision, and reliability that your high performance fuel system requires to deliver optimum performance. DW adjustable regulators come in 1,000 and 2,000 hp models, with both featuring dual AN inlets, single bottom mounted AN returns, and semi-compact 60mm footprints for maximum installation flexibility. They utilize stainless steel hardware, nitrile fiber diaphragms, anodized housings, and 100 percent brass-free construction to be compatible with ethanol and methanol. The design of the DeatschWerks fuel pressure regulators will also allow for precision pressure adjustment via their ball-bearing mechanism, combined with a 2 psi-per-turn pressure ratio that makes dialing-in your desired target easy.

Specs:

• 30-100 psi of pressure

• Return style inline regulator

• Boost/vacuum reference port

• Gauge port

• Two -10 AN inlets

• -8 AN outlet

• -6 AN return fitting

• Aluminum construction

• Black finish

• Mounting bracket included

• Fittings not included

Part Number: 6-2000-FRB
